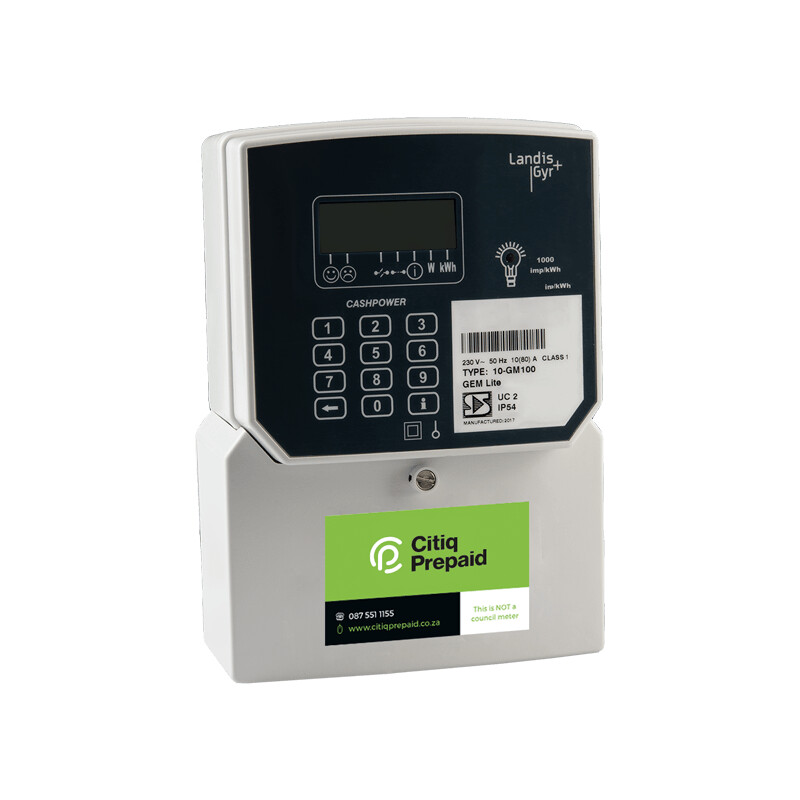

The Gem Lite is a single-phase integrated meter with keypad.

Features

Proven Cashpower keypad technology.

Maximum current: 80 Amps

Compact meter in BS format.

Meter fitted with LCD and a keypad.

Clear language-independent icons on the display and membrane of the meter.

Clear load switch status indicator.

Scrolling display for 11-digit STS meter serial number.

Displays the last 50 vouchers entered. (Displays the 20-digit STS voucher and the date and time of the voucher)

Mechanically sealed against tampering.

Significant Reverse Energy Detection.

Programmable software power limit.

Advanced decommissioning and commissioning feature for an easy installation process.

Tamper detection facility.

Meter enclosure manufactured with UV-stable, flame-retardant plastic material.

Degree of protection, IP54.

Improved sealing against ingress of insects.

Supports shortcodes (refer to the user guide)

Conforms to IEC62055-31

Exceeds IEC62055-31 requirements for voltage.

Impulse withstand.

Fully STS compliant (IEC62055-41/51)
